'Extrude Curve' node

It would be really great to have one, right now I'm having to subdivide a two-point curve once, then I move the mid point to the position of the last point and then I have to translate the last point to the desired position. It would be much easier to have an 'extrude curve' node so we would create a new segment from the last point that would follow either the tangent or a custom direction. Is there a reason why it doesn't exist or it simply hasn't been thought/released yet?

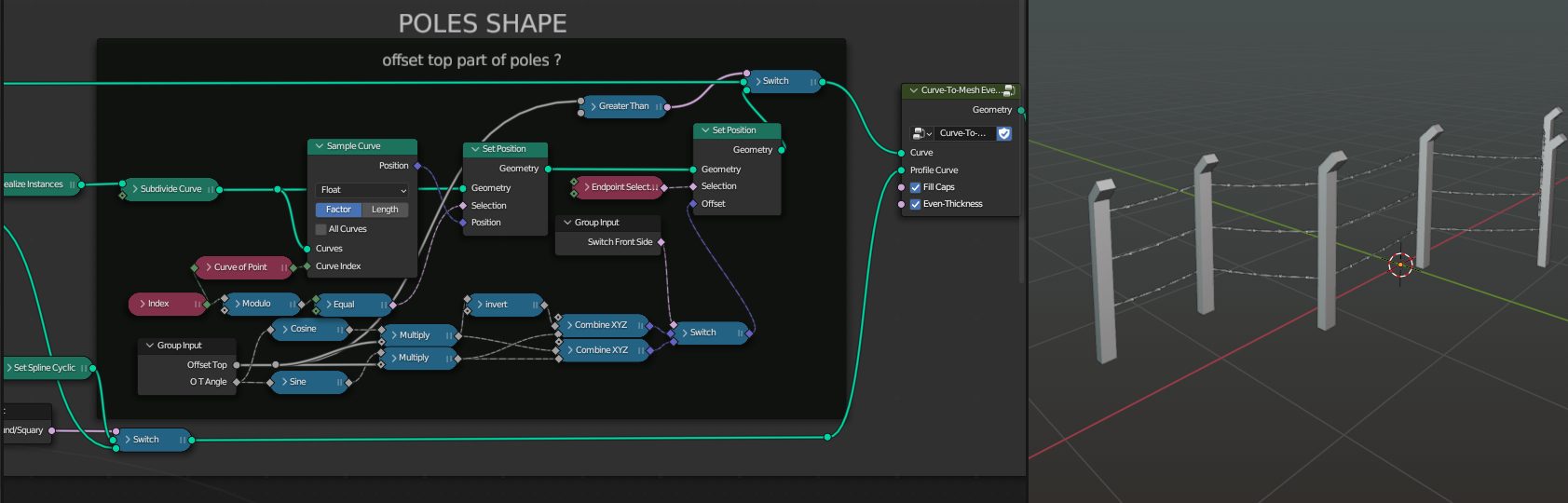

In this image, I have a horizontal line in the ground, from which I instanced the vertical poles, then I realized the instances, subdivided the curves, grabbed their mid-point and dislocated to the last point position, and then took the last point dislocated in an angle. Captura de tela 2023-09-25 141314.png

PS: it would be much more complicated to extrude after the 'curve to mesh' node, because you see that the pole get sheared ('skewed') before extrusion.

100%

Development Status: Open

Upvote 8 Downvote 0
lobo_alcalino
25 Sep 2023

3 Comments

thorn

A visual would help, because based on how I'm interpreting your words this can already be done... So, perhaps you're describing something different.

2
lobo_alcalino Author

Done

MasterJames

It would be nice to use geonodes to set a data property like a bezier curve's 'data' pane has in 'Geometry' called 'Extrude' { example of data path bpy.data.curves["BézierCurve"].extrude } I don't think it's possible currently.
