Compositor 'Cryptomatte' Node - RegEx Support
What is it?
This seems like a pretty obvious thing to want for the
Cryptomatte
node, so much so that I imagine the only reason why it isn't in already is because it is some technical hurdle under-the-hood.
Right now, the
Cryptomatte
node is restricted to a system of one-to-one mapping. one ID in the
Matte ID
field, one piece of the
Cryptomatte
RenderLayer
is retrieved.
The "technical hurdle" I imagine under the hood is that RegEx would change that to a one-to-many mapping, turning the whole field into one collective query instead of a comma-separated
OR
query.

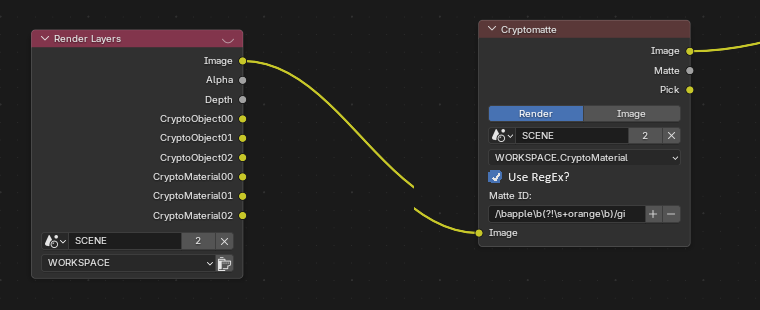

A Crude Example?
In the above example, enabling the
Use RegEx?
option allows the
Cryptomatte
node to pick all
Material
s from the
CryptoMaterial
RenderLayer
where the word
apple
is present in the
Material
name so long as it is not immediately followed by the word
orange
(case-insensitive).
This would be hugely useful for associating a prefix or phrase in named additions to one of the
Cryptomatte
RenderLayer
s with a "group" of sorts. I suppose it could be argued that then you might as well set up a unique
RenderLayer
but I think that this concept makes, for example, rigs with a delicate
RenderLayer
setup for the best results a lot more portable than mandating users of the rig set up several
RenderLayer
s as opposed to adding a pass or two to just one pre-exsiting layer.
