rounding off the corner of the Bezier curve

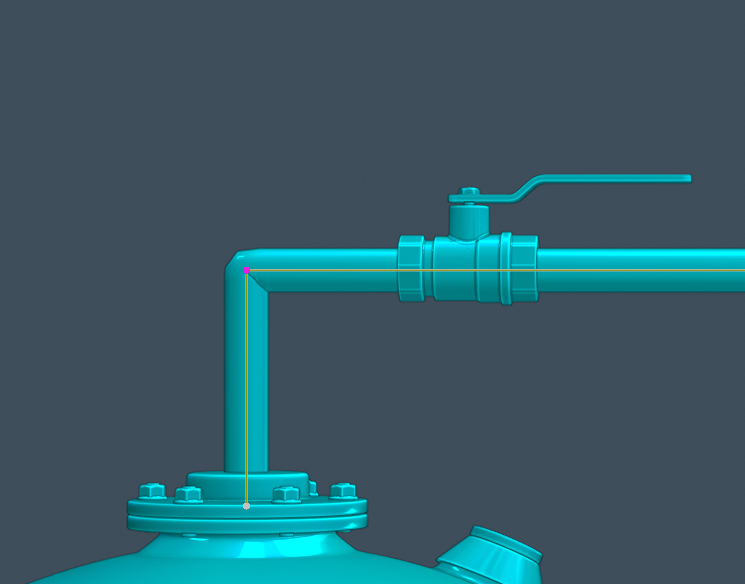

It seems logical to apply the Ctrl+Shift+B hotkey to the selected point of the bezier curve. To get rounding out of the corner.
I mean, one point divides into two, creating a rounding. imgur.com/JcJugPO
It seems logical to apply the Ctrl+Shift+B hotkey to the selected point of the bezier curve. To get rounding out of the corner.
I mean, one point divides into two, creating a rounding. imgur.com/JcJugPO
12 Comments
I love blender, But truly hate the curve "bezier" tool. Dislike that you add it to the scene, you should just start drawing, click, move, click. The handles are really frustrating to select and move, The middle "Vert" should be bigger than the control handles to differentiate from one another. Dislike that the normals are on by default. There is no distribution of vert across the length, it needs an averaging selection. The start and end vert should be different colors Green, Red. Tapering should be done in the control panel with an X/Y curves UI, not selecting a second bezier. IMO
* @othoap * If you hold CTRL while clicking it adds a new Point. You can also select both Ends (with shift) and it will add then two new points. Hope this helps a little.
* @zbindenmarc * Thank you! I found another way out. Addon Bezier Curve Fillet Tool: imgur.com/yiidU2S But his developer doesn't get in touch. And there is no update for 2.8. And I basically think that it should be part of the Blender. Not as a built-in add-on, but as internal functionality.
* @4dezigner * how about this one blendermarket.com/products/bezier-curve-fillet-tool
* @othoap * lol ) imgur.com/fvYGfcP
It would also be awesome if the Bevel modifier did this to curve objects aswell
Yes, improves in spline workflow could be great, specially this.
I talked with Howard and he told me that he will try to implement it for GSOC
Do you mean Set the Control Handle Type to Vector?
Or do you mean scale the control points to 0?
* @ammusionist * I mean, one point divides into two, creating a rounding. imgur.com/JcJugPO
* @4dezigner * Ah - Got it. From pointy TO rounded! (With only 1 picture above I incorrectly assumed it was the "After" picture!)
It's true:)
