Bether way to make drawing from 3D to 2D Draft with description of objects/elements
Regarding this post as: Blender Orthographic projection as 4in1 6in1
Explode all object by distance from local orientation and grouping objects (Decomposition)
Expecting something like spreadsheet under
Orthographic projection as 4in1 with list of objects/elements.
Geometry nodes : add an "Attribute spreadsheet file" node
Take point how many job we must do to prepare some documentation when we using blender.
youtube.com/watch Blender How to make drawing from 3D to 2D Draft
youtube.com/watch Blender 2.8 Modeling a technical piece
By this we going to other software other like Solidworks, Inventor

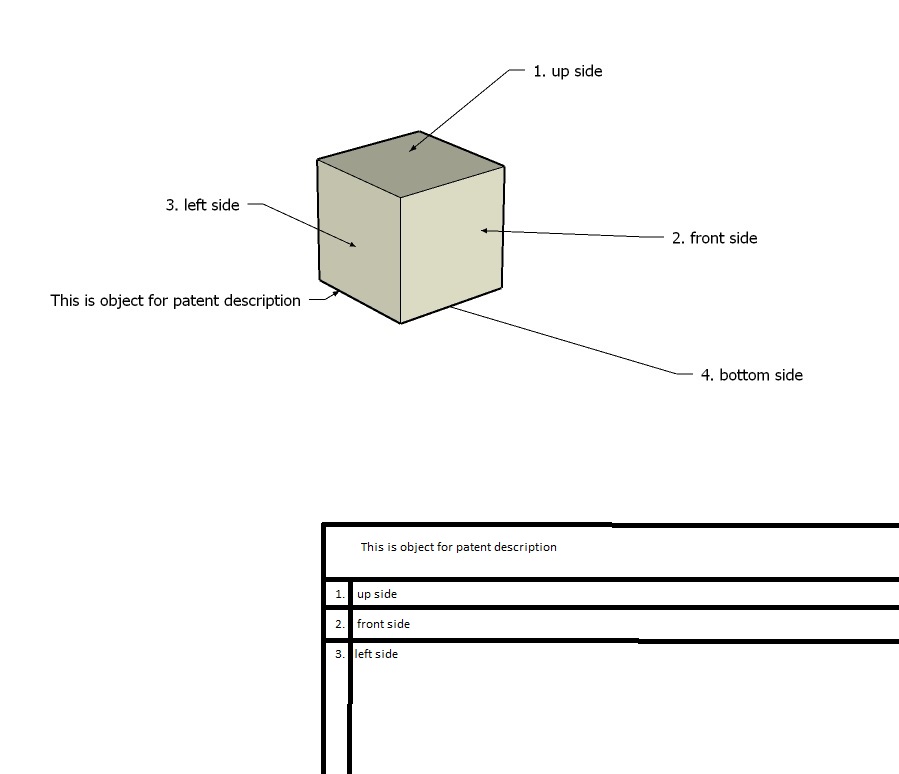

In this fact, I like sketchup solution around as TEXT LABEL with arrows:
2 Comments
Also better snapping option for 2d view like while snapping ignore the 3rd axis, constraining to particular direction by holding Alt key.
I see the Lables like
1. + spreadsheet(A2)orspreadsheet(A1) + spreadsheet(A2)..regarding this function: New Driver type "Sum Value with step" then input "step value" for each Variable
